Prometheux on Databricks

Prometheux integrates with Databricks through JDBC connectivity across all major cloud platforms (AWS, Azure, and Google Cloud), allowing you to execute Vadalog rules against Unity Catalog tables and SQL warehouses. This integration provides secure, governed access to your lakehouse data while maintaining performance and scalability regardless of your cloud provider.

JDBC Configuration​

Prometheux connects to Databricks using the OSS JDBC driver with OAuth 2.0 Machine-to-Machine (M2M) authentication. This approach provides secure, token-managed connectivity without manual token handling across all supported cloud platforms.

Multi-Cloud Platform Support​

Prometheux supports Databricks deployments on all major cloud platforms:

  • AWS (Amazon Web Services): dbc-xxxxxxxx-xxxx.cloud.databricks.com
  • Microsoft Azure: adb-xxxxxxxx-xx.x.azuredatabricks.net
  • Google Cloud Platform: xxxxxxxx-xxxx.x.gcp.databricks.com

The connection configuration remains consistent across all platforms, with only the hostname format varying by cloud provider.

Authentication Options​

Configure OAuth authentication using client credentials provided by your Databricks administrator:

# Databricks JDBC OAuth Configuration
databricks.host=<workspace-hostname>
databricks.httpPath=/sql/1.0/warehouses/<warehouse-id>
databricks.oauth2.clientId=<client-id>
databricks.oauth2.clientSecret=<client-secret>

# Connection string automatically constructed:
# jdbc:databricks://<host>:443;<http-path>;AuthMech=11;Auth_Flow=1;OAuth2ClientId=<client-id>;OAuth2Secret=<client-secret>

Option 2: Personal Access Token​

For development environments, you can use personal access tokens:

# Databricks JDBC Token Configuration
databricks.host=<workspace-hostname>
databricks.httpPath=/sql/1.0/warehouses/<warehouse-id>
databricks.token=<personal-access-token>
databricks.authMode=PAT

UI-Based Configuration​

Prometheux provides a user-friendly configuration interface for setting up Databricks connectivity. The data source connection dialog supports both OAuth and Personal Access Token authentication methods:

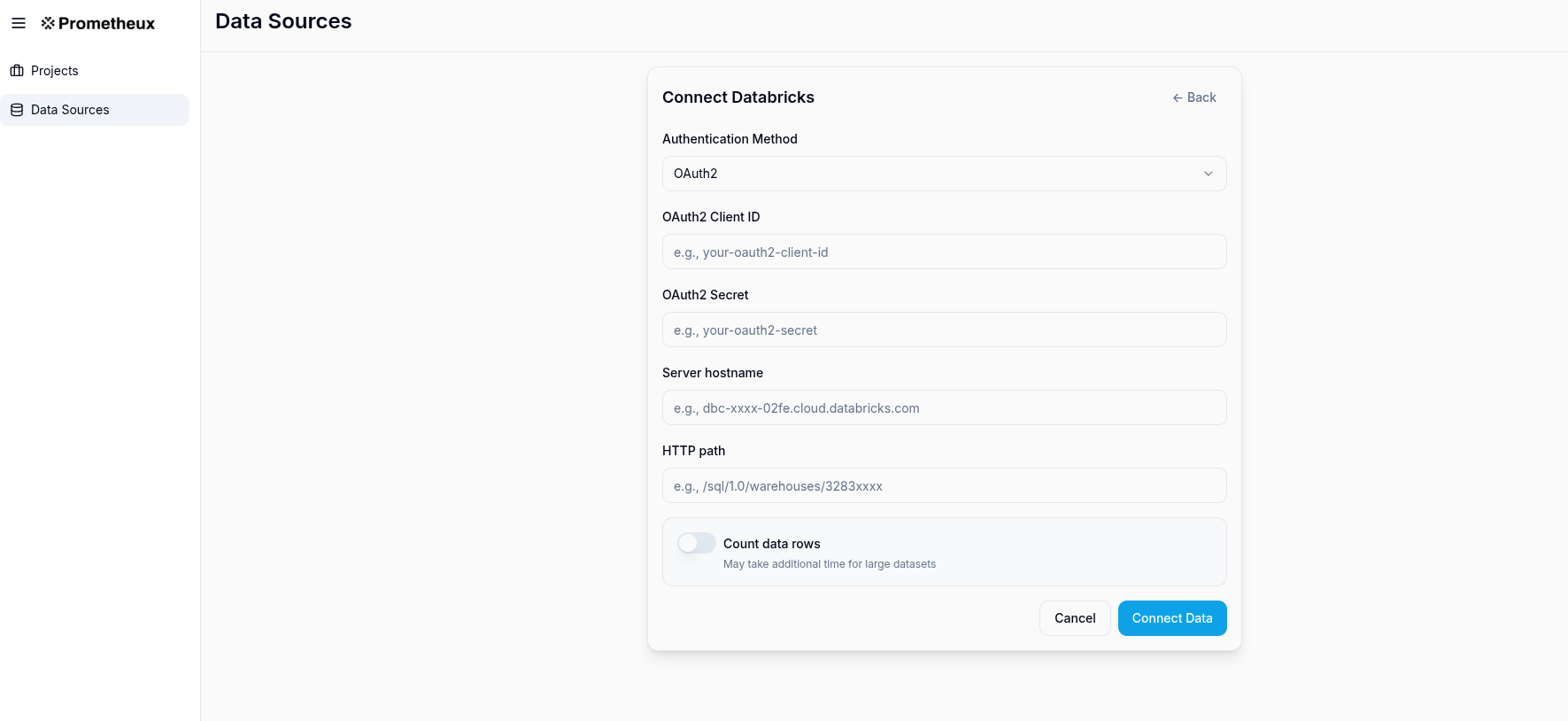

Databricks Connection UI

Configuration Fields:

  1. Database Type: Select "Databricks" from the dropdown
  2. Client ID:
    • For OAuth: Enter your OAuth client ID (e.g., e5f1e15e-xxxx-xxxx-xxxx-2ed89291cc1c)
    • For PAT: Leave this field empty
  3. Secret/PAT: Enter your OAuth client secret or Personal Access Token (automatically masked for security)
  4. Host: Enter your Databricks workspace hostname based on your cloud platform:
    • AWS: dbc-xxxxxxxx-xxxx.cloud.databricks.com
    • Azure: adb-xxxxxxxx-xx.x.azuredatabricks.net
    • GCP: xxxxxxxx-xxxx.x.gcp.databricks.com
  5. Port: Default is 443 for HTTPS connections
  6. Warehouse: Enter the SQL warehouse HTTP path (e.g., /sql/1.0/warehouses/f66xxxxxxxxxxxxx)
  7. Additional Options (JSON): Provide additional JDBC parameters as needed

Optional Authentication Configuration:

For OAuth (Default):

{
  "region": "us-east-1",
  "ConnTimeout": "10000",
  "SocketTimeout": "10000"
}

For Personal Access Token:

{
  "authMode": "PAT",
  "region": "us-east-1",
  "ConnTimeout": "10000",
  "SocketTimeout": "10000"
}

Cloud-Specific Examples:

  • AWS: {"region": "us-east-1"}
  • Azure: {"region": "eastus"}
  • GCP: {"region": "us-central1"}

Security Features:

  • Credential Masking: Secrets and PATs are automatically redacted in the UI
  • Dual Authentication: Supports both OAuth and PAT authentication methods
  • Vault Integration: Supports pulling credentials from external secret managers
  • Connection Testing: Built-in connectivity validation before saving

JDBC Driver Setup​

Prometheux uses the open-source Databricks JDBC driver for optimal performance and compatibility:

<!-- Maven dependency for OSS JDBC driver -->
<dependency>
    <groupId>com.databricks</groupId>
    <artifactId>databricks-jdbc</artifactId>
    <version>1.0.10-oss</version>
</dependency>

Data Operations​

Reading from Unity Catalog​

Configure input tables using Unity Catalog three-level namespace:

% Input configuration for Unity Catalog tables
@bind("customers", "databricks", "sales_catalog.crm_schema", "customers").

@bind("orders", "databricks", "sales_catalog.transactions_schema", "orders").

% Vadalog rule using Unity Catalog data
customer_orders(CustomerName, OrderId, OrderDate, Amount) :-
    customers(CustomerId, CustomerName, Email),
    orders(OrderId, CustomerId, OrderDate, Amount).

@output("customer_orders").
@bind("customer_orders", "databricks", "analytics_catalog.reports_schema", "customer_orders").

Running in Databricks Notebooks​

Prometheux can be executed directly within Databricks notebooks for interactive analysis and development. This approach is ideal for data scientists and analysts who want to combine Vadalog reasoning with Spark's computational capabilities.

Graph Analytics Example​

Here's a complete example demonstrating how to perform graph analytics using Prometheux in a Databricks notebook. This example computes all shortest paths between airports using flight route data:

%scala
val tableName = "air_routes_edges"
val outputTable = "all_shortest_paths_routes"

val program = s"""
  @bind("air_routes","databricks inCluster=true","","prometheux_workspace.default.$tableName").
  edge(From, To, Dist) :-
    air_routes(Id, From, To,Label,Dist).

  all_shortest_paths_routes(From,To,Distance) :- #ASP(edge).

  @output("all_shortest_paths_routes").
  @bind("all_shortest_paths_routes","databricks inCluster=true","","$outputTable").
"""

val args = Array(program)
uk.co.prometheux.prometheuxreasoner.PrometheuxReasonerMain.main(args)

Key Features of In-Cluster Execution:

  • inCluster=true: Enables direct access to Spark tables without JDBC overhead
  • Dynamic Table Names: Use Scala string interpolation for flexible table references
  • Unity Catalog Support: Access tables using three-level namespace (catalog.schema.table)
  • Immediate Results: Output tables are created directly in the cluster

Notebook Setup Requirements​

Before running Prometheux in a Databricks notebook, ensure:

  1. Prometheux JAR Installation: Upload the Prometheux JAR to your cluster
  2. Cluster Configuration: Configure the cluster with appropriate Spark settings
  3. Data Preparation: Ensure input tables exist with the correct schema

Sample Data Schema:

CREATE TABLE prometheux_workspace.default.air_routes_edges (
  Id INT,
  From STRING,
  To STRING,
  Label STRING,
  Dist DOUBLE
) USING DELTA;

Advanced Notebook Patterns​

Multi-Step Analysis:

%scala
// Step 1: Data preprocessing
val preprocessProgram = s"""
  @bind("raw_routes","databricks inCluster=true","","raw_flight_data").

  clean_routes(From, To, Distance) :-
    raw_routes(_, From, To, _, Distance),
    Distance > 0.

  @output("clean_routes").
  @bind("clean_routes","databricks inCluster=true","","clean_air_routes").
"""

// Step 2: Graph analysis
val analysisProgram = s"""
  @bind("routes","databricks inCluster=true","","clean_air_routes").

  edge(From, To, Dist) :- routes(From, To, Dist).
  shortest_path(From, To, MinDist) :- #ASP(edge).

  @output("shortest_path").
  @bind("shortest_path","databricks inCluster=true","","flight_shortest_paths").
"""

// Execute both steps
uk.co.prometheux.prometheuxreasoner.PrometheuxReasonerMain.main(Array(preprocessProgram))
uk.co.prometheux.prometheuxreasoner.PrometheuxReasonerMain.main(Array(analysisProgram))

Result Visualization:

%sql
-- Visualize results directly in Databricks
SELECT From, To, Distance
FROM all_shortest_paths_routes
WHERE Distance < 1000
ORDER BY Distance
LIMIT 100

Security and Governance​

Unity Catalog Integration​

Prometheux fully respects Unity Catalog governance policies:

  • Access Control: User permissions are enforced through JDBC connections
  • Data Lineage: Query execution is tracked in Unity Catalog
  • Audit Logging: All data access is logged for compliance
  • Schema Evolution: Automatic handling of table schema changes

Credential Management​

Production Deployment:

  • Store client secrets in external vault systems (Azure Key Vault, AWS Secrets Manager, HashiCorp Vault)
  • Reference secrets through environment variables or vault integrations
  • Rotate credentials regularly through automated processes

Development Environment:

  • Use personal access tokens with limited scopes
  • Configure token expiration policies
  • Enable IP allowlisting for additional security

Best Practices​

  • Use SQL Warehouses: Leverage serverless SQL warehouses for optimal performance
  • Partition Awareness: Prometheux respects table partitioning for efficient queries
  • Result Caching: Automatic caching of intermediate query results
  • Batch Processing: Optimal batch sizes for JDBC operations

Troubleshooting​

Common Connection Issues​

  1. Authentication Failures

    • Verify client ID and secret are correct
    • Check OAuth scope permissions
    • Ensure workspace access is granted

  2. Network Connectivity

    • Validate hostname and HTTP path
    • Check firewall rules and IP allowlists
    • Test JDBC connection independently

  3. Permission Errors

    • Verify Unity Catalog table permissions
    • Check schema and catalog access rights
    • Review service principal assignments
